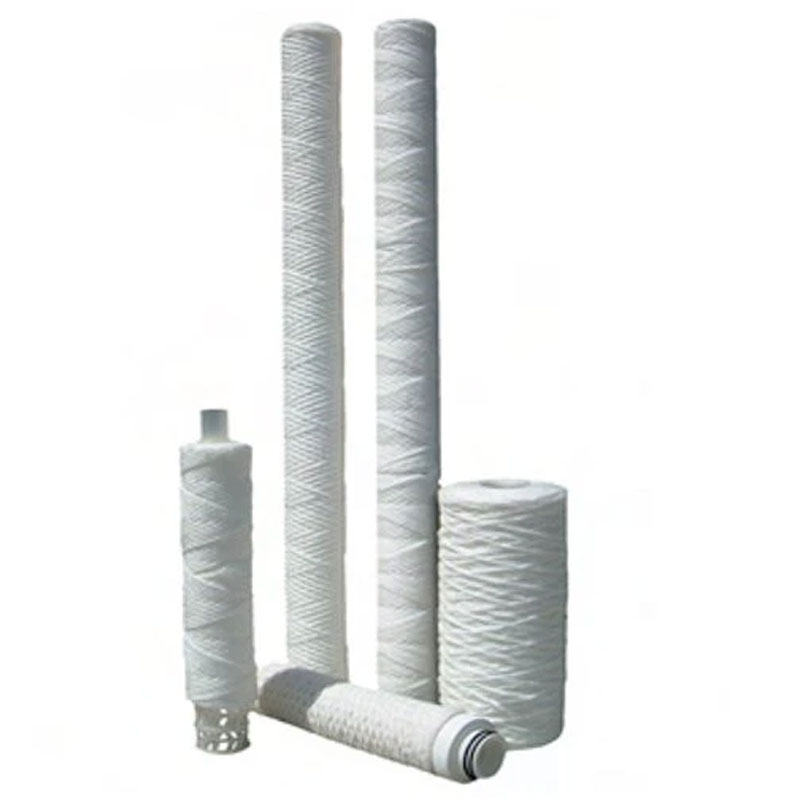

Glass Fiber Wound Filter Cartridge
Aris Filtration Glass Fiber Wound Filter Cartridge is a depth filtration cartridge designed for efficient removal of suspended solids and particulate contaminants from industrial liquids. Made with glass fiber yarn wound over a supporting core, it provides graded depth filtration, high dirt-holding capacity, high flow and low pressure drop for demanding liquid filtration applications. Aris Filtration is a manufacturer and exporter of industrial filtration products based in Ahmedabad, Gujarat, India. The company provides filtration solutions for air, gas and liquid applications and serves industries including oil & gas, textiles, mining and minerals, cement, steel and water treatment.
What Is a Glass Fiber Wound Filter Cartridge?
A Glass Fiber Wound Filter Cartridge is a depth-type liquid filter made by continuously winding glass fiber yarn around a supporting core. The controlled winding pattern creates interconnected passages through the filter media, allowing particles to be progressively captured as liquid moves from the outer surface toward the inner core.
Unlike a simple surface filter that primarily captures particles at one layer, a wound cartridge provides graded depth filtration. This structure enables the cartridge to retain particulate matter throughout its depth and can provide high dirt-holding capacity while maintaining flow.
Key definition: A glass fiber wound filter cartridge is an industrial liquid filtration element in which glass fiber yarn is precisely wound around a core to create progressively finer filtration pathways.
Aris Filtration's published wound cartridge range includes glass fiber yarn with an SS core, along with PP yarn with PP core and cotton yarn with SS core options.
Why Choose a Glass Fiber Wound Filter Cartridge for Industrial Filtration?
Glass fiber is selected for applications where the filter needs to provide controlled depth filtration and withstand demanding industrial filtration conditions. The winding pattern can be designed according to the required micron rating, enabling progressive particle retention through the cartridge.
Key benefits include:
- Graded depth filtration for progressive particle capture
- High dirt-holding capacity for particulate-loaded liquids
- High flow performance for industrial filtration systems
- Low pressure drop during filtration
- High pressure resistance for demanding applications
- Compact cartridge construction for easy installation
- Availability in multiple lengths, diameters and connection configurations
Aris Filtration states that its wound cartridges use specially designed winding patterns controlled through computerized programming according to the required micron rating.
What Are the Available Specifications of Glass Fiber Wound Filter Cartridges?
Aris Filtration's published wound filter cartridge specifications provide multiple options for industrial filtration system design. The available sizes include 10", 20", 30", 40" and 50" lengths, with outer diameters of 2.5", 4" and 4.5". Published filtration ratings are 1, 5, 10, 25, 50, 75 and 100 microns.
| Parameter | Available Specification |
|---|---|
| Filter Media | Glass Fiber Yarn |
| Core | Stainless Steel (SS) Core |
| Length | 10", 20", 30", 40", 50" |
| Outer Diameter | 2.5", 4", 4.5" |
| Inner Diameter | 28 mm & 50 mm |
| Filter Rating | 1, 5, 10, 25, 50, 75, 100 micron |
| Fittings | DOE, SOE, Code-222 |
Important: Final cartridge selection should be based on the liquid being filtered, particle characteristics, required micron rating, operating conditions, filter housing and process requirements.
Where Are Glass Fiber Wound Filter Cartridges Used?
Glass fiber wound cartridges can be considered for industrial liquid filtration where suspended solids and particulate contamination need to be reduced before or during a process stage.
Typical target industries for Aris Filtration include:
- Water Treatment: Pretreatment and process-water filtration
- Refineries: Filtration of process liquids and hydrocarbon-related streams
- Mining: Filtration of process water and mineral-processing liquids
- Pulp & Paper: Process-water and chemical filtration
- Chemicals: Chemical, solvent and organic-acid filtration
- Textiles: Process-liquid and dye-related filtration
- Power Plants: Industrial water and process-fluid filtration
- Dye & Intermediates: Filtration of process liquids and intermediates
- Oil & Gas: Liquid filtration in industrial process applications
- Edible Oils: Filtration of oil and process streams
- Automobiles: Coolant, process-water and industrial liquid filtration
- Petrochemicals: Process-liquid filtration
- Paints & Inks: Filtration of liquid formulations and particulate matter
- Aeronautics: Industrial process-liquid filtration
- Cement: Process-water and related liquid filtration
- Fertilizers: Chemical and process-liquid filtration
- Bio-Pharma: Suitable liquid filtration applications subject to media compatibility and process validation
- Ceramics: Process-water and slurry-related filtration
- Sugar: Process-liquid filtration
- Defence & Marines: Industrial liquid filtration applications
Aris Filtration specifically lists water treatment, pharmaceuticals, edible oils, chemicals, acid and alcohol filtration, solvents and organic acids among wound cartridge applications.
How Does a Glass Fiber Wound Filter Cartridge Work?
The filtration process starts when contaminated liquid enters the outer portion of the wound cartridge. As the liquid travels inward through the wound glass fiber structure, particles are retained at different depths according to the cartridge's designed filtration pathways.
This progressive particle capture is the primary reason wound cartridges are used for depth filtration. The controlled winding creates numerous passages through which liquid flows while particulate contaminants become trapped within the media.
Key statement: A wound filter cartridge captures particles progressively through its depth rather than relying only on a single filtration surface.
How Do You Select the Right Glass Fiber Wound Cartridge?
Choosing the correct cartridge requires more than selecting a micron rating. Consider the complete filtration application:
- Required micron rating – Determine the approximate particle size that must be removed.
- Liquid compatibility – Confirm that the glass fiber construction and cartridge components are suitable for the process liquid.
- Flow requirement – Select a suitable cartridge configuration for the required process flow.
- Dirt loading – Consider the concentration and nature of suspended solids.
- Operating pressure – Check the pressure conditions of the filtration system.
- Cartridge dimensions – Match the cartridge length, diameter and connection to the filter housing.
- Process objective – Determine whether the cartridge is being used for pre-filtration, polishing or another filtration stage.
For specialized applications, cartridge selection should be finalized using actual process-fluid characteristics and operating conditions rather than micron rating alone.
What Makes Aris Filtration a Suitable Supplier?
Aris Filtration focuses on industrial filtration technologies covering macron and micron filtration for air, gas and liquid applications. Its product portfolio includes cartridge filter housings, bag filter housings, wound cartridges, pleated cartridges, sintered filters, liquid filter bags, air filters and gas filter elements.
The company identifies oil & gas, steel, textile, mining and minerals, cement, electronics and water-treatment plant manufacturers among its customer sectors. Aris Filtration operates from Ahmedabad, Gujarat, and its website identifies the company as ISO 9001:2015 certified.
Frequently Asked Questions
(1)What is a glass fiber wound filter cartridge used for?
It is used for depth filtration of industrial liquids to remove suspended solids and particulate contaminants. Typical applications include water treatment, chemicals, solvents, edible oils and other industrial process liquids.
(2)What micron ratings are available?
Aris Filtration's published wound cartridge range includes 1, 5, 10, 25, 50, 75 and 100 micron filtration ratings.
(3)What sizes are available?
Published cartridge lengths are 10", 20", 30", 40" and 50", with outer diameters of 2.5", 4" and 4.5".
(4)What is the core material used with the glass fiber version?
Aris Filtration specifies glass fiber yarn with an SS core for its wound filter cartridge range.
(5)What are the main advantages of wound filter cartridges?
The key advantages are high flow, low pressure drop, high dirt-holding capacity, graded depth filtration and high pressure resistance.
(6)How can I select the correct cartridge for my process?
The selection should consider micron rating, liquid compatibility, flow rate, contaminant loading, operating pressure, cartridge dimensions, connection type and the requirements of the filtration system. Aris Filtration can evaluate these parameters for application-specific selection.
Looking for a Glass Fiber Wound Filter Cartridge Manufacturer in India?
For industrial users requiring glass fiber wound filter cartridges, depth filtration cartridges or customized liquid filtration solutions, Aris Filtration provides wound cartridge options from its manufacturing base in Gujarat, India.
Contact Aris Filtration to discuss your filtration requirements, including micron rating, cartridge dimensions, fitting, process liquid, flow conditions and application.
