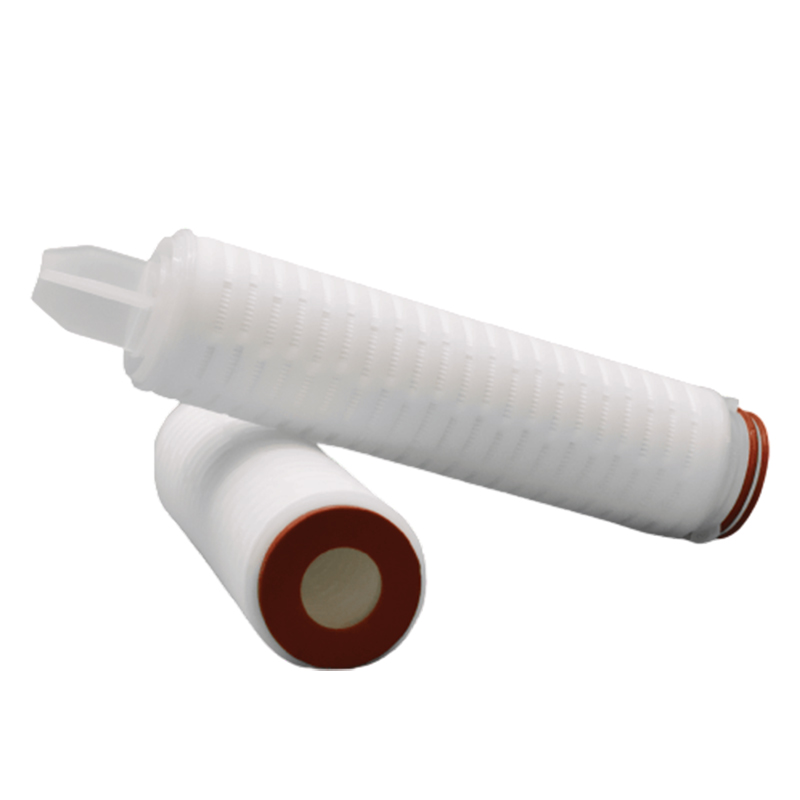

PVDF Pleated Filter Cartridge
PVDF Pleated Filter Cartridges are high-performance liquid filtration elements designed for demanding industrial applications where chemical compatibility, fine particle retention, high flow and reliable filtration performance are important. Manufactured by Aris Filtration, Gujarat, India, these cartridges are suitable for water treatment, chemicals, refineries, mining, textiles, oil & gas, petrochemicals and other process industries.
What is a PVDF Pleated Filter Cartridge?
A PVDF Pleated Filter Cartridge is a cartridge-type filtration element made with polyvinylidene fluoride (PVDF) filter media arranged in a pleated configuration. Pleating increases the effective filtration area within a compact cartridge, helping achieve efficient particle removal while maintaining useful flow characteristics.
PVDF is a fluoropolymer known for its chemical resistance, mechanical strength and oxidative stability. PVDF materials are widely used for demanding filtration and membrane applications, including water treatment, chemical processing and industrial separation.
Aris Filtration develops industrial filtration products for air, gas and liquid applications and serves sectors including oil & gas, textiles, mines and minerals, cement and water treatment.
Why choose a PVDF Pleated Filter Cartridge?
PVDF is selected when a filtration application requires more than basic particle removal. Its material properties make it useful for process streams where chemical exposure, demanding cleaning conditions, purity requirements or long-term filtration stability need to be considered.
Key advantages of PVDF pleated filtration
- Broad chemical resistance: PVDF is recognized for resistance to a wide range of chemicals and is used in chemical processing and filtration equipment.
- High filtration area: The pleated construction provides a large effective media area in a compact cartridge format.
- Efficient particle retention: Available filtration ratings can be selected according to the required separation duty.
- Low-pressure-drop potential: Properly sized pleated cartridges can provide efficient filtration without unnecessarily restricting process flow.
- Mechanical durability: PVDF offers strong mechanical properties and resistance to ageing.
- Suitable for demanding process environments: PVDF is used in industrial filtration, chemical processing, water treatment and oil & gas-related applications.
- Compact installation: Cartridge construction allows easy installation and replacement in compatible filter housings.
Key statement: PVDF pleated filter cartridges are best suited to industrial filtration applications where chemical compatibility, fine filtration and dependable process performance are critical.
What industries use PVDF Pleated Filter Cartridges?
| Industry | Typical filtration consideration |
|---|---|
| Water Treatment | Process water, polishing and particulate filtration |
| Refineries | Process liquids and hydrocarbon-related filtration |
| Mining | Process water and mineral-processing streams |
| Pulp & Paper | Process liquids and chemical streams |
| Chemicals | Corrosive or chemically demanding process fluids |
| Textiles | Dye, chemical and process-water filtration |
| Power Plants | Water and process-fluid filtration |
| Dyes & Intermediates | Fine filtration of process liquids |
| Oil & Gas | Process and utility-fluid filtration |
| Edible Oils | Liquid clarification and particulate removal |
| Automobiles | Process water, chemicals and coolant-related filtration |
| Petrochemicals | Process-fluid and chemical filtration |
| Paints & Inks | Fine particulate and process-liquid filtration |
| Aeronautics | High-purity and specialized process filtration |
| Cement | Process and utility-water filtration |
| Fertilizers | Chemical and process-liquid filtration |
| Bio-Pharma | High-purity process applications where compatible |
| Ceramics | Process-water and liquid filtration |
| Sugar | Process-liquid and water filtration |
| Defence & Marines | Utility, process-water and specialized filtration |
PVDF pleated cartridges can be considered for a wide range of industrial liquid filtration duties. The correct cartridge specification depends on the fluid chemistry, temperature, pressure, required micron rating and compatibility of all wetted components.
Application suitability should always be confirmed against the actual fluid, operating conditions and cartridge construction before selection.
How does the pleated design improve filtration performance?
A pleated filter cartridge folds the filtration media into multiple closely spaced pleats. This increases the available filtration surface compared with a flat sheet occupying the same approximate cartridge footprint.
The larger effective surface area can support:
- Greater particle-loading capacity.
- Efficient utilization of available filter-housing space.
- High-flow filtration when correctly sized.
- Practical cartridge replacement and maintenance.
- Flexible selection of filtration ratings for different process requirements.
Aris Filtration's existing pleated cartridge range is offered in multiple cartridge dimensions, filtration ratings and connection configurations, demonstrating the company's approach toward application-specific filtration selection.
What specifications should be considered when selecting a PVDF filter cartridge?
Selecting a PVDF cartridge should be based on the complete filtration duty rather than micron rating alone.
| Selection Parameter | Why it matters |
|---|---|
| Filter media | Determines chemical and application compatibility |
| Micron rating | Defines the intended particle-retention level |
| Cartridge length | Must match the filter housing |
| Outer/inner diameter | Determines physical compatibility |
| End connection | Must match the housing configuration |
| Flow rate | Helps determine required filtration area |
| Operating pressure | Influences cartridge and housing selection |
| Operating temperature | Must remain within the media and construction limits |
| Fluid chemistry | Essential for material compatibility |
| Contaminant loading | Helps determine cartridge life and replacement interval |
| Sterility/purity requirements | Important for pharmaceutical and high-purity processes |
Aris Filtration's published pleated cartridge range includes 10", 20", 30" and 40" lengths, with configurations including DOE, SOE, Code-222 and push-fit connections; however, these published specifications are for its PP pleated cartridge range and should not automatically be treated as PVDF specifications.
Where can PVDF filtration be an alternative to other filter media?
Different filter materials are suited to different process conditions. PP pleated filter cartridges are commonly selected for broad industrial applications, while PTFE may be preferred where particularly demanding chemical or gas-filtration requirements apply. PES is widely associated with high-purity filtration applications, while SS pleated cartridges can be selected when mechanical strength, cleanability or higher-temperature service is important.
PVDF occupies an important position where chemical resistance, durability and filtration performance need to be balanced. PVDF is also used to manufacture microfiltration and ultrafiltration membranes because of its toughness, chemical resistance and oxidative stability.
How does Aris Filtration manufacture industrial filtration solutions?
Aris Filtration is a manufacturer and exporter of industrial filtration products based in Gujarat, India. The company states that it works with macro- and microfiltration technologies for air, gas and liquid applications and supplies filtration solutions to domestic and international industrial sectors.
Its product portfolio includes cartridge filter housings, bag filter housings, basket housings, duplex filter systems, PP pleated filter cartridges, wound cartridges, liquid filter bags, air filters, gas filter elements and other industrial filtration products.
Aris Filtration also states that its quality processes include testing and retesting before product release and references ISO 9001, ASME and CE-PED-related quality practices.
Why work with Aris Filtration?
- Manufacturer and exporter based in Gujarat, India.
- Experience across macro- and microfiltration applications.
- Industrial filtration solutions for air, gas and liquid streams.
- Application experience across oil & gas, textiles, mining, cement and water treatment.
- Cartridge and housing solutions available for different industrial filtration requirements.
- Customization can be evaluated according to process and equipment requirements.
Frequently Asked Questions
(1)What is a PVDF Pleated Filter Cartridge used for?
It is used for liquid filtration where fine particle removal and chemical compatibility are important. Typical target sectors include water treatment, chemicals, refineries, mining, textiles, oil & gas, petrochemicals, paints, inks and other process industries.
(2)Is PVDF suitable for chemical filtration?
PVDF is widely used in chemical processing and filtration because of its broad chemical resistance. However, compatibility depends on the specific chemical, concentration, temperature and exposure conditions, so the actual process should be checked before selection.
(3)What micron rating should I choose for a PVDF cartridge?
The appropriate micron rating depends on the particle size that must be removed, upstream filtration, required product quality and downstream equipment protection. The cartridge should be selected from process test data or the filtration objective rather than choosing a micron rating solely by industry.
(4)Can PVDF cartridges be used in water treatment?
Yes. PVDF is an established material for water-filtration and membrane applications, including wastewater treatment and RO/NF pretreatment.
(5)Can Aris Filtration provide customized filtration solutions?
Aris Filtration states that its filtration products and designs can be developed around customer requirements. For a PVDF cartridge, buyers should provide details such as fluid type, flow rate, operating temperature, pressure, required micron rating, housing dimensions and connection type for proper specification.
Need the Right PVDF Pleated Filter Cartridge for Your Process?
Choosing a cartridge based only on the phrase “PVDF filter cartridge” is not enough? The best filtration solution depends on the fluid, contaminant, required micron rating, flow rate, pressure, and temperature, housing and chemical compatibility.
Aris Filtration can help evaluate your industrial filtration requirement and identify a suitable cartridge configuration for your application. Contact the Gujarat-based manufacturer and exporter for product specifications, customization requirements and filtration-system assistance.
